该产品已停产。可能仍有剩余库存。请参阅下面 "类似产品 "下的替代产品或直接联系我们

此停产产品的替代产品：

ISS-19P-103117

A homogenous light source for camera calibration and pixel uniformity check has been designed.

  • Output port has a diameter is 3”
  • Intensity range from 0 cd/m² up to 60000 cd/m²
  • Inhomogeneity is smaller +/- 0.25 %
  • Relative calibration uncertainty is ± 2.0 %
ISS-19P-103117

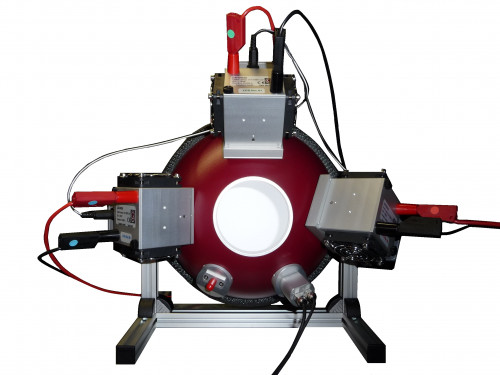

ISS Configuration

A homogenous light source for camera calibration and pixel uniformity check has been
designed. The product is based on a integrated sphere type ISS-19P. The light sources
which are controlled by three LPS100-RM. The intensity of these can be adjusted
by variable apertures. The absolute measurement of the intensity is
measured by a X1-RM reference detector.

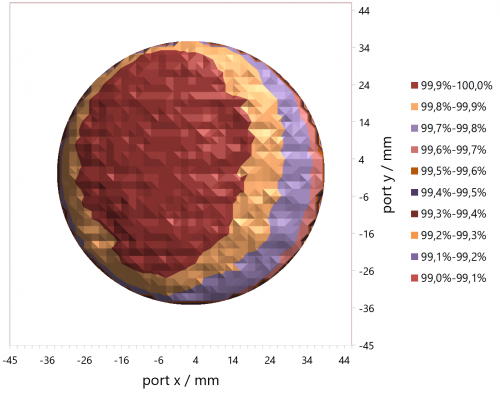

High Homogeneity

The aim was a high homogeneity and in addition an high tunable intensity range.

Calibration

A factory calibration and as well an DAkkS ISO 17025 test is available in our high-quality calibration lab for radiometric and photometric quantities.

High Homogeneity

High Homogeneity
