Este producto ya no se fabrica. Es posible que queden existencias. Consulte las alternativas que figuran a continuación en "Productos similares" o póngase en contacto con nosotros directamente.

Productos alternativos para este producto descatalogado:

ISD-5-Si
Integrating sphere detector for Laser power in W

LP-9910

Integrating sphere detector with Si photodiode and 50 mm sphere for laser power in W. Features: 400 - 1100 nm spectral responsivity, 12.5 mm dia measurement port, Barium sulphate coating, for the usage with Optometer and signal amplifiers, calibration certificate.

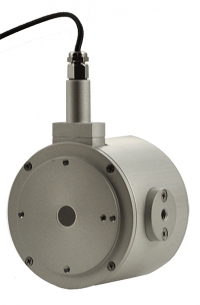

LP-9910

Integrating Sphere Detector

The LP-9910 integrating sphere detector employ a 50 mm diameter barium sulphate ate coated integrating sphere with 12.5mm diameter measurement port. A baffle limits direct irradiation of the detector from dispersed light. The LP-9910 features a Si photodiode detector for use in the spectral range from 400 to 1100nm spectral range.

Traceable Calibrations

Calibration of spectral radiant power sensitivity in W is performed in 10 nm steps from 400 to 1100 nm at Gigahertz-Optik’s Calibration Laboratory for Optical Radiation Quantities.

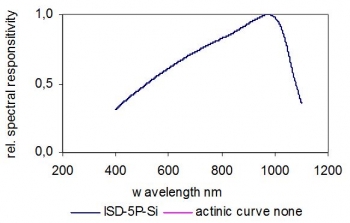

Typical Spectral Responsivity

Typical Spectral Responsivity
