Integrating Spheres

Integrating spheres for setting-up measurement systems for measuring light and optical radiation, transmission, reflection and absorption as well as for integrating sphere light sources. We as an experienced manufacturer of integrating spheres can surely implement your application ideally! Either based on standard integrating sphere systems or individually configured integrating sphere setups.

The operation principle of integrating sphere as a hollow sphere with a diffuse reflective inner coating is presented in detail in our tutorials, among others: Integrating Sphere Tutorial - Theory, Application and Use

Integrating spheres are configured by us as a integrating sphere manufacturer for their use as integrating sphere detectors, integrating sphere light sources or configurations for absorption, transmission and refection measurements. However, due to the many different applications, there is no "one" standard integrating sphere. Gigahertz-Optik therefore offers both, standard products configurations as well as individual products tailored to the application and the customer, see our Integrating Sphere Construction Kit for Individual Configurations. In particular, this integrating sphere construction kit with its large selection of components offers a lot of freedom in the design of the integrating sphere (sphere diameter/size, amount and position of ports, diameter of ports or port reducers, sphere coating material, etc.). Fore more information see 10 step process for setting-up an individual integrating sphere.

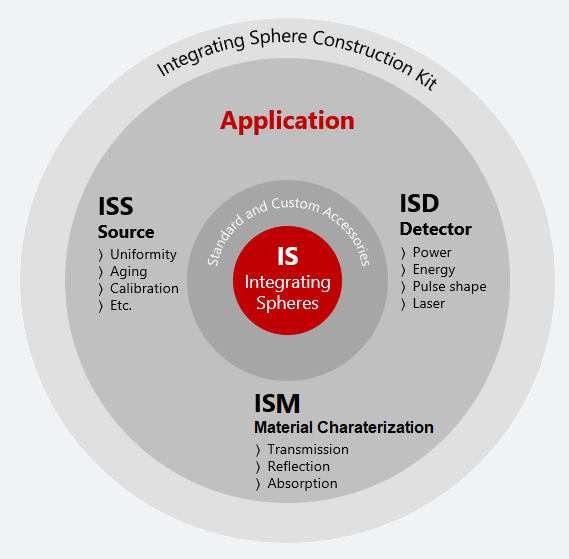

integrating sphere selection guideThis is complemented by a large number of integrating sphere accessories as well as customer-specific adaptation options. See our abbreviations and some guidelines and further information:

Integrating Sphere Construction Kit

A universal kit for the custom configuration of integrating spheres and integrating sphere light sources. The use of standard components provides cost effective and timely implementation. Complete solutions for measuring systems and integrating sphere light sources.

Integrating Spheres for Reflection, Transmission and Absorption

Integrating spheres and accessories optimized for the measurement of reflection, transmission, absorption and photoluminescence.

Integrating Spheres with Synthetic Coating

Integrating spheres with synthetic ODM98 coating. Precise CNC machining. Diameter from 8 mm to 250 mm.

Integrating Sphere Light Sources

Integrating sphere light sources with LED based or continuous broadband emission spectrum for use as luminance standards for camera calibration, for the determination of veiling glare, for the adjustment of night vision devices and much more. Diameters in the range from 50 mm to 500 mm with options like monitor detector, signal output control by manual and remote apertures and much more.

Integrating Sphere Based Spectroradiometer Systems

Spectroradiometer systems with integrating sphere for the measurement of UV-VIS-NIR spectral radiant flux (W/nm) and luminous flux (lm) and chromaticity metrics.

Broadband Light Meters with Integrating Sphere

Broadband light meters with integrating sphere for measuring laser power (W) and luminous flux (lm).
