RCH-XXXs Series

For UV-C disinfection systems, the fluence rate must be measured to ensure that the dose is sufficient for adequate disinfection. E.G. DIN 67506 requires as on option such measurements in order to characterize UV-C secondary air devices. With our RCH-0XXs detector series real spherical irradiance measurements, hence the fluence rate are possible. This traceable calibrated with high homogenity to provide accurate measurements. This for 254 nm or UV-C LEDs.

Convincing specifications

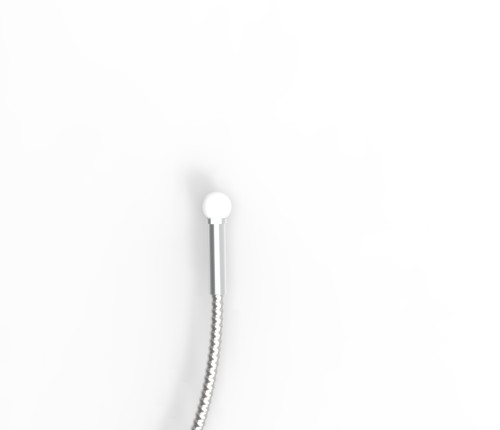

A high degree of homogeneity of the spherical diffuser for precise measurements as well as high temperature resistance with little aging. We offer traceable calibrations, which can also be optimised for the desired radiation sources. To ensure a convincing application, the detector consists of a very small 10 mm diffuser sphere size and a flexible detector hose, which allows the measuring system to be easily inserted into systems.

Calibration

The detector can be built with different spectral responses and can be optimised and calibrated for various standard light sources or customer-specific lamps. The calibration is supplied with a factory calibration certificate that corresponds to the high standard of the measuring laboratory for optical radiation measurements of Gigahertz-Optik. If necessary, a test certificate accredited according to DIN EN ISO / IEC 17025 can optionally be created for the detector with the associated measuring device.

Option

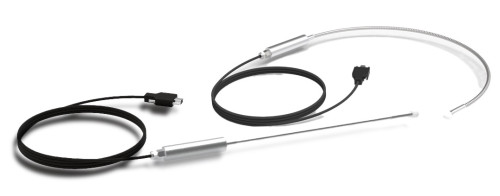

A version with rigid fiber is also available.
