High accuracy LED measurements from device manufacture to end use applications

Get Precision Tooled LED Measurement Technology

for Product Development, Quality Control & Field Use

The manufacture of LEDs and LED based products requires specialized measurement technology for the accurate measurement of light intensity, spectral power distribution, color and other quantities. Gigahertz-Optik GmbH offers a comprehensive range of LED light measuring devices, accessories and calibrations.  See our cost-effective LED light meters below for application testing, product testing and component testing for conventional and solid-state (LED & OLED) light sources.

LED Application Testing

MSC15

MSC15

A cost effective, compact, handheld spectral light meter. Measures over 30 different light and color quantities as well as PAR plant growth and Bilirubin phototherapy functions.

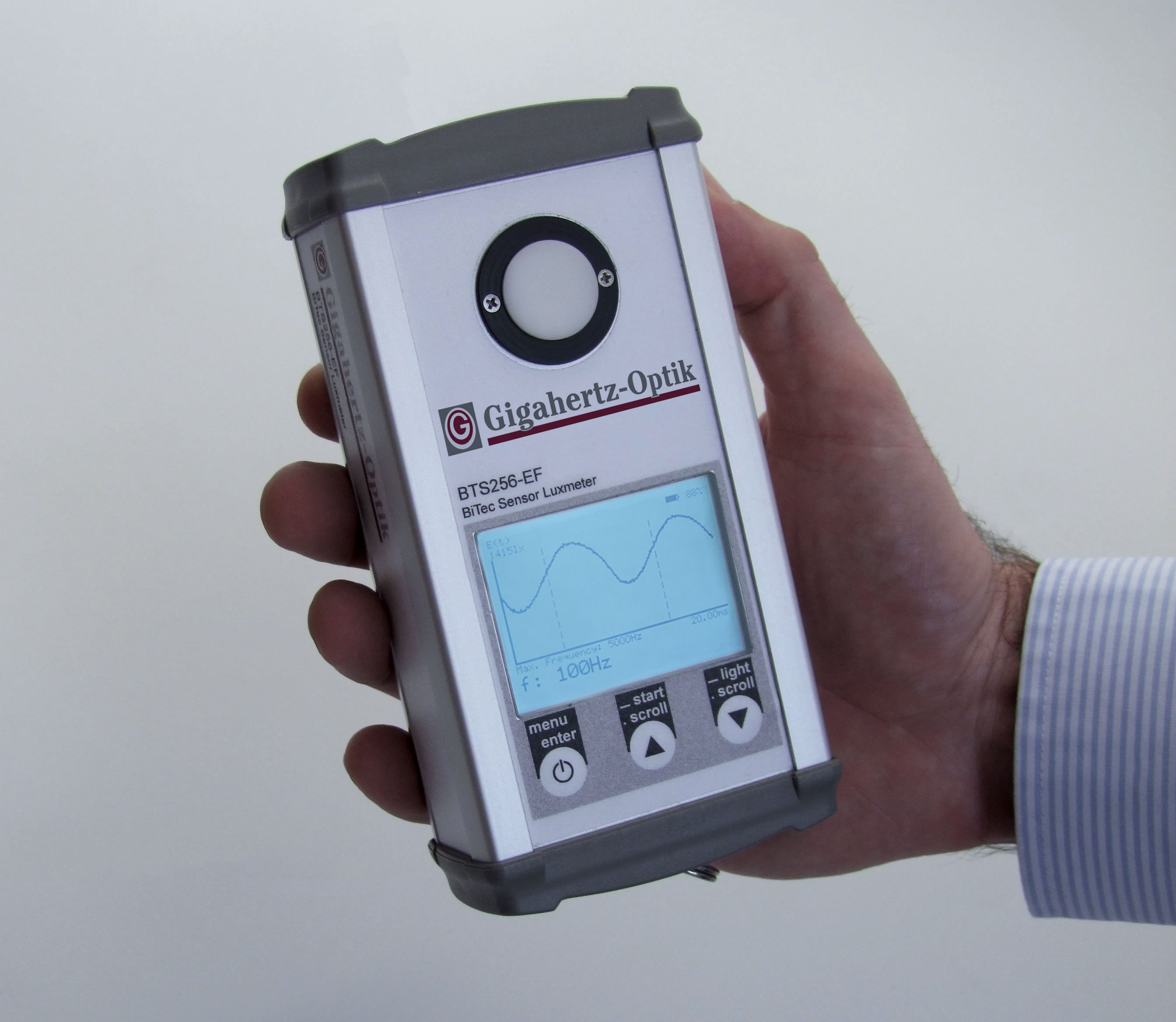

BTS256-EF

BTS256-EF

Practical hand-held LED tester for complete LED & light source, color, light intensity & light spectrum measurements. This LED flux spectrometer is suitable for measuring individual LEDs within assembly and LED arrays up to 1h mm diameter. Additional function for flicker measurement.

X1-1-RCH-116-4

X1-1-RCH-116-4

UV Radiometer for high intensity LED irradiation in UV curing processes.

LED Product Testing

BTS256-LED

BTS256-LED

Handheld LED flux spectrometer suitable for measuring individual LEDs within assemblies and LED arrays up to 10 mm diameter. Full visible spectrum and color data.

ISD-21-BTS256-LED

ISD-21-BTS256-LED

The combination of the BTS256-LED with the ISD-21 integrating sphere (21 cm diameter) is ideal for lumens, color and spectral measurement of spot lamps with diameters up to 63.5 mm.

ISD-50HF-BTS256-LED

ISD-50HF-BTS256-LED

Fully opening integrating sphere (50 cm diameter) and spectrometer for the lumens, color and spectral measurement of 4π lamps with a diameter of up to 127 mm (optional 2π and 4π).

ISD-100HF-BTS256-LED

ISD-100HF-BTS256-LED

Spectral light meter with 100 cm integrating sphere, fully opening for easy lamp placement in sphere center. Optional port for directional lamp measurements.

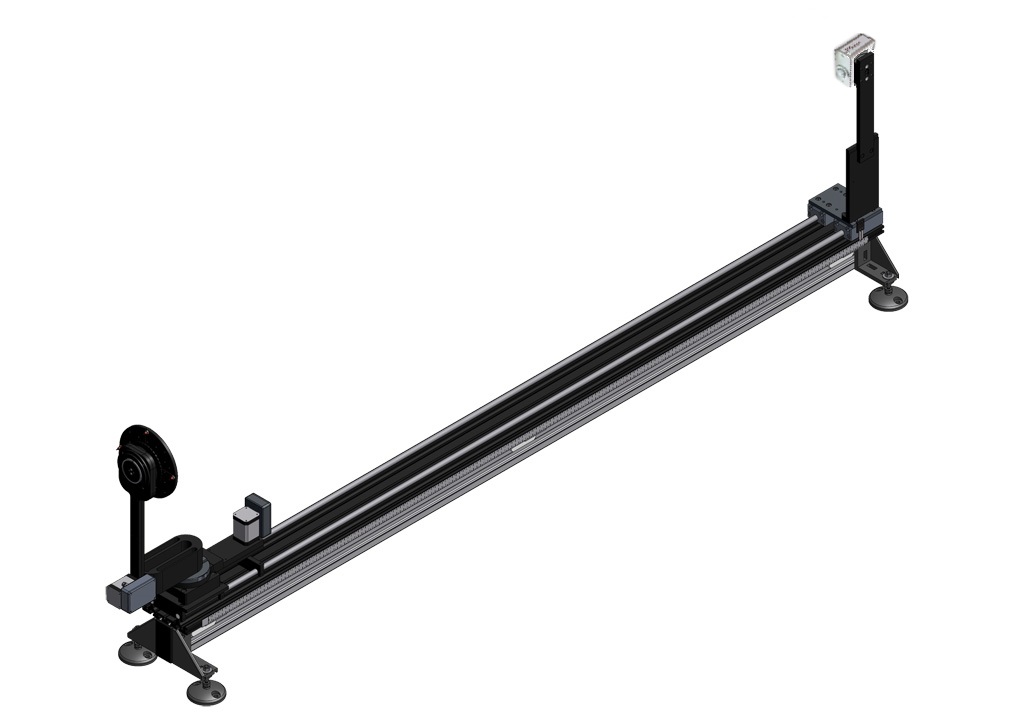

GB-GD-360-RB40-2-BTS256-LED

GB-GD-360-RB40-2-BTS256-LED

System for the measurement of the luminous intensity distribution (IES, EULUMDAT), illuminance, luminous flux, spectrum and color of 2π lamps and LEDs.

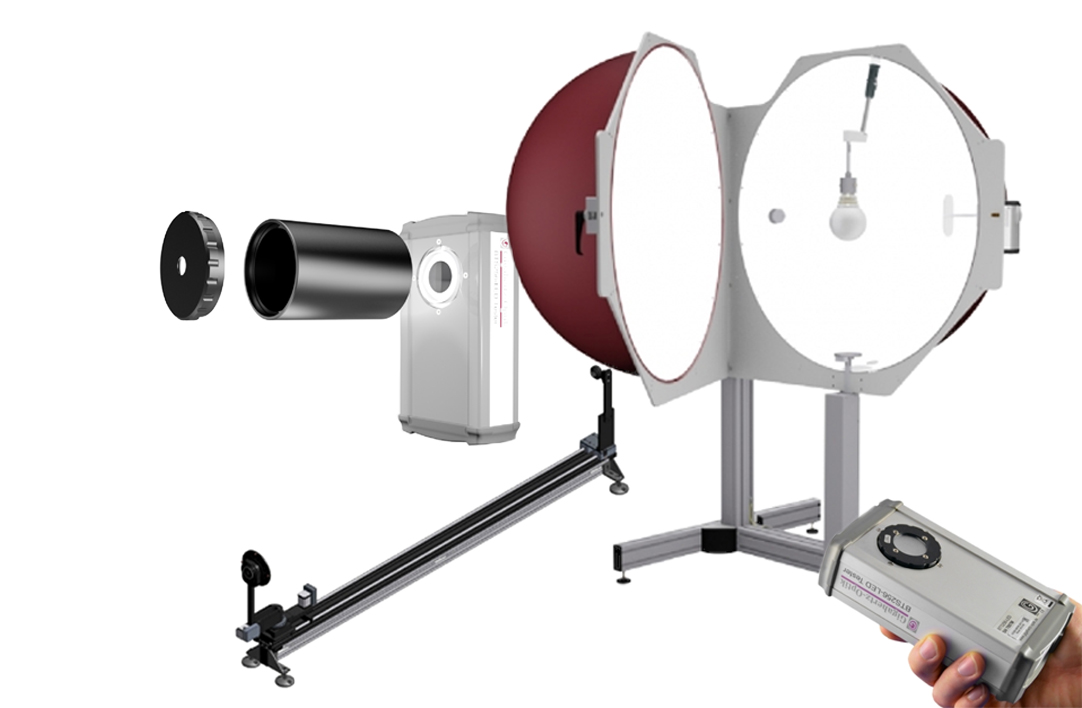

BTS256-LED Plus-Concept

BTS256-LED Plus-Concept

The BTS256-LED spectral light meter is offered with a wide range of accessories to provide a universal measurement laboratory for LEDs and LED lamps. A precision bayonet adapter ensures easy changeover of fittings.

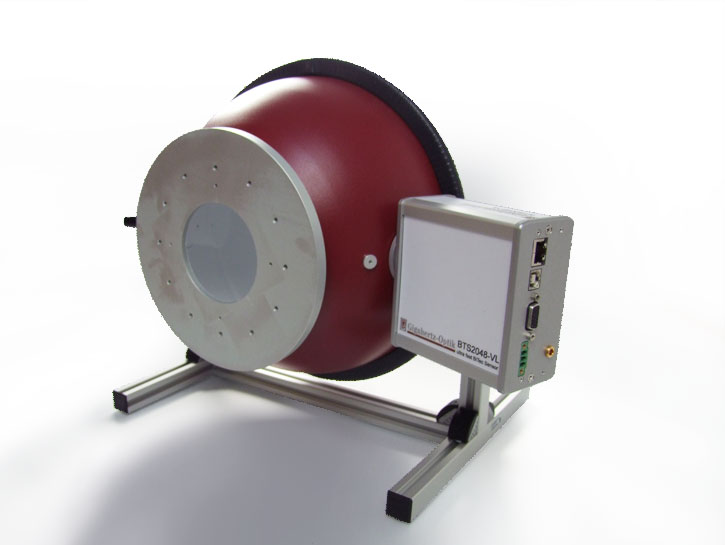

ISD-25-BTS2048-VL

ISD-25-BTS2048-VL

Spectroradiometer with 25 cm integrating sphere, complying with CIE 127 for the measurement of luminous flux (lumens), spectrum, color and color rendering. Large mounting plate at the measurement port.

ISD-100HF-V06-BTS2048-VL

ISD-100HF-V06-BTS2048-VL

An opening integrating sphere (100 cm diameter) and high dynamic range BTS2048-VL spectrometer for the luminous flux (lumens), color and spectral measurement of 4π lamps). Also a 254 mm diameter application port enables measurement of directional luminaires and lamps (2π).

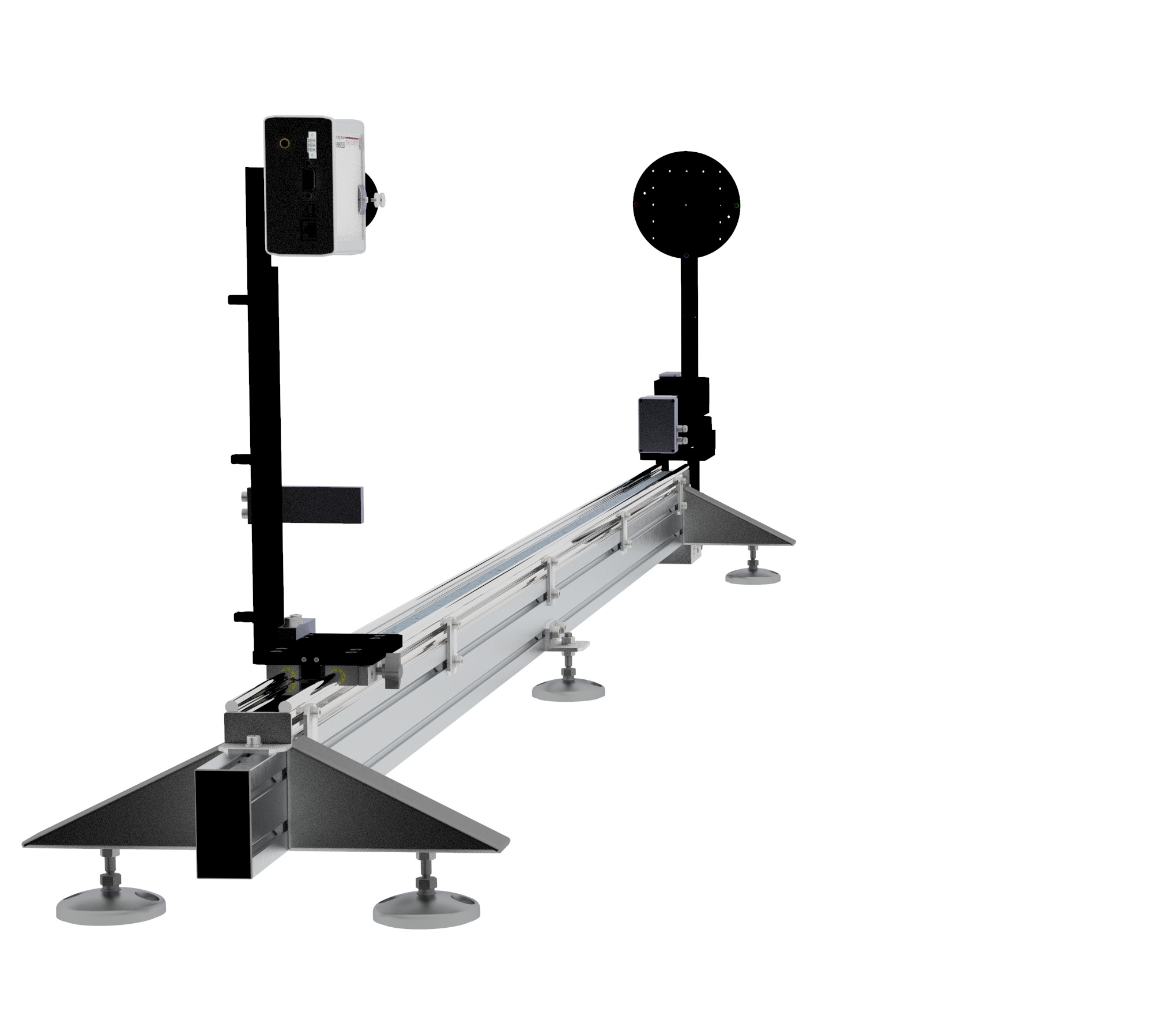

GB-GD-360-RB40-2-BTS2048-VL

GB-GD-360-RB40-2-BTS2048-VL

System for the measurement of the luminous intensity distribution (IES, EULUMDAT), illuminance (lux), luminous flux (lumens), spectrum and color of 2π lamps and LEDs employing the BTS2048-VL, high dynamic range, wide wavelength, precision spectrometer for greatest accuracy and speed.

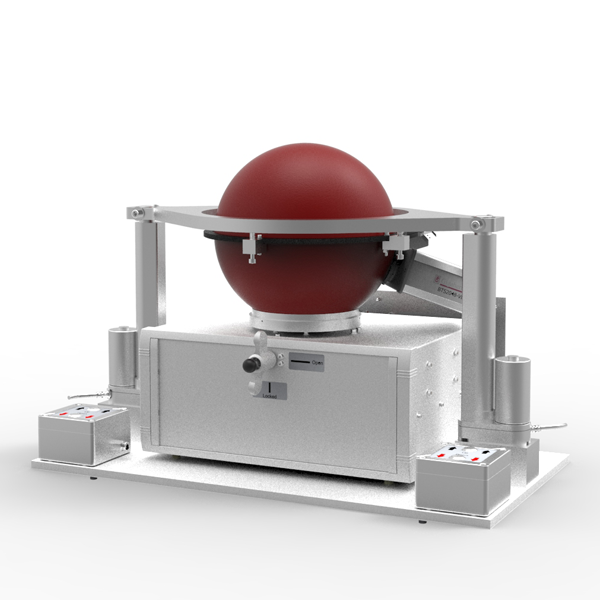

TPI21-TH

TPI21-TH

Automated, high speed, temperature controlled LED measurement system for 2π radiation characteristics conforming to CIE S 025, LM-79-08 and DIN 5031 Part 9.

LED Component Testing

BTS2048-VL / BTS2048-VL-TEC

BTS2048-VL / BTS2048-VL-TEC

Ultra-fast BiTec sensor light meter for high-quality photometric, radiometric, spectral-radiometric and colorimetric measurements. The compact design and elaborate optical, electronic and mechanical interfaces make it ideal for integration in complex industrial and scientific measurement tasks. The -TEC thermo-electrically cooled version suits the most demanding high speed measurements.

BTS2048-VL-F / BTS2048-VL-F-TEC

BTS2048-VL-F / BTS2048-VL-F-TEC

The BTS2048-VL is also offered with a precision interface for use with fibre optic based input optics facilitating a wide range of measurement configurations and third party accessories.

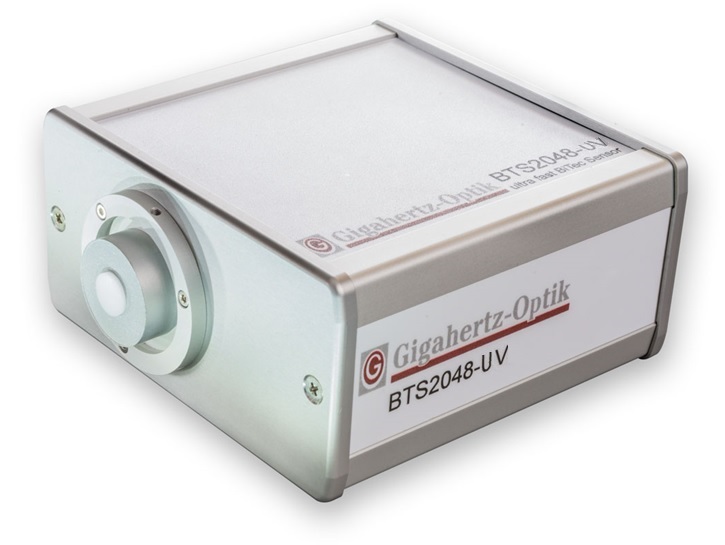

BTS2048-UV

BTS2048-UV

This very compact high-quality UV spectroradiometer benefits from elaborate optical, electronic and mechanical interfaces making it ideal for integration into complex industrial and scientific measurement tasks.

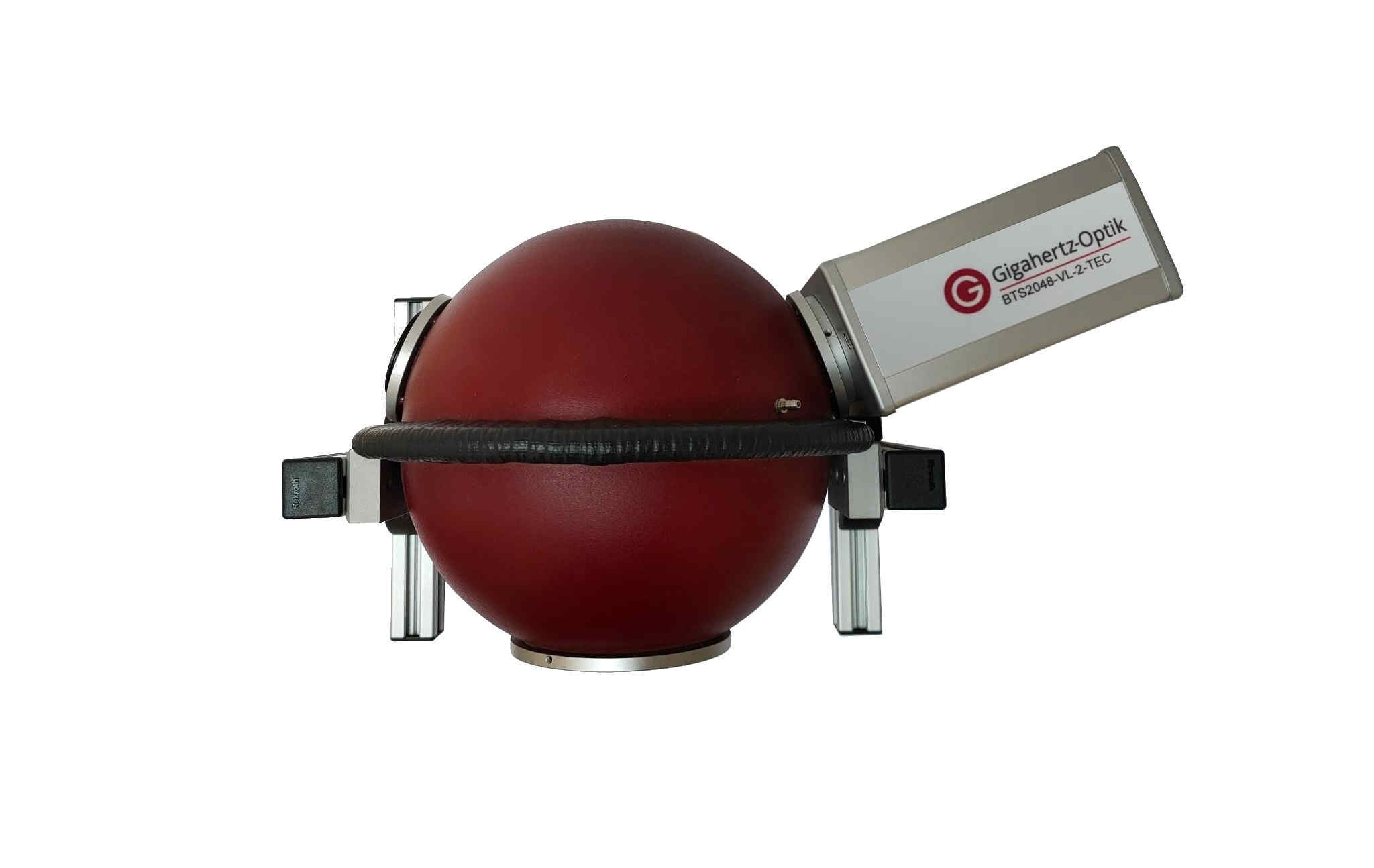

ISD-15-BTS2048-VL

ISD-15-BTS2048-VL

A highly compact, 'plug-and-play' module for luminous flux measurements incorporating a 15 cm diameter integrating sphere.

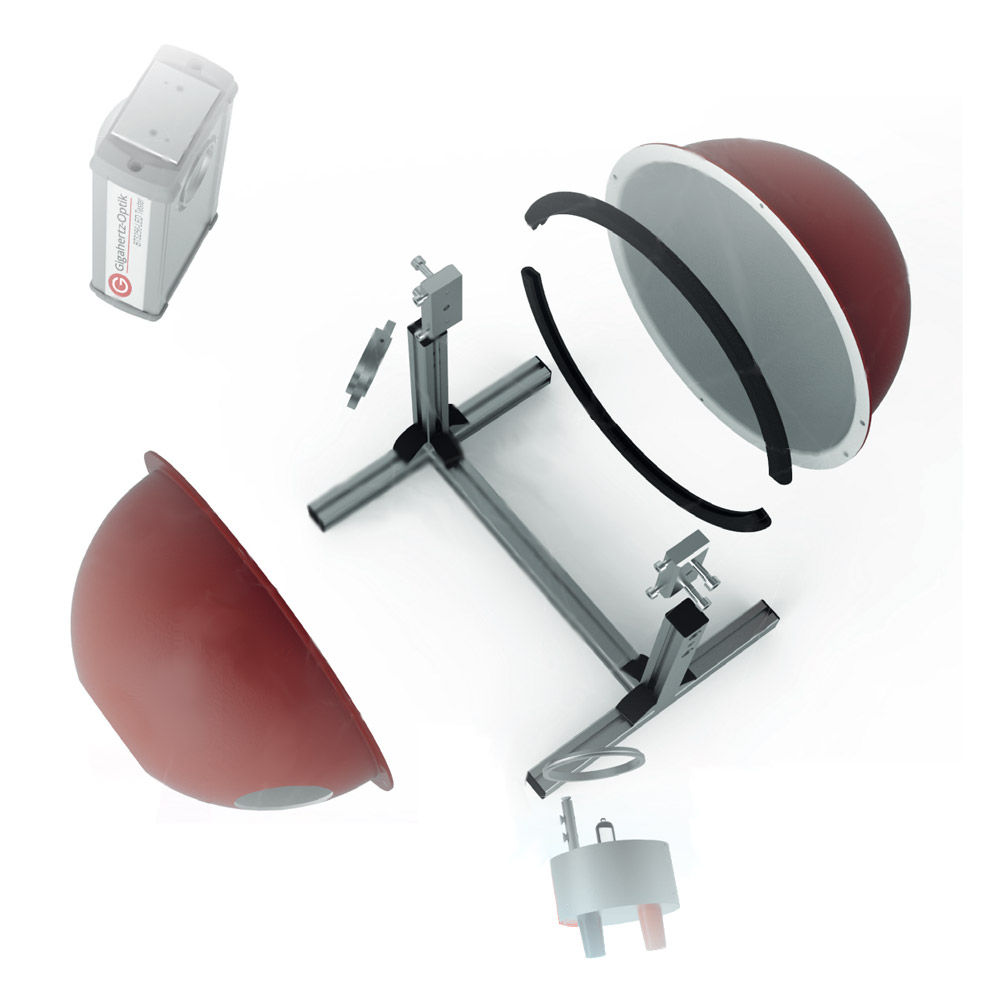

UM-Series

UM-Series

The integrating sphere construction kit enables the cost-effective setup of individually configured integrating spheres by using standard products.
